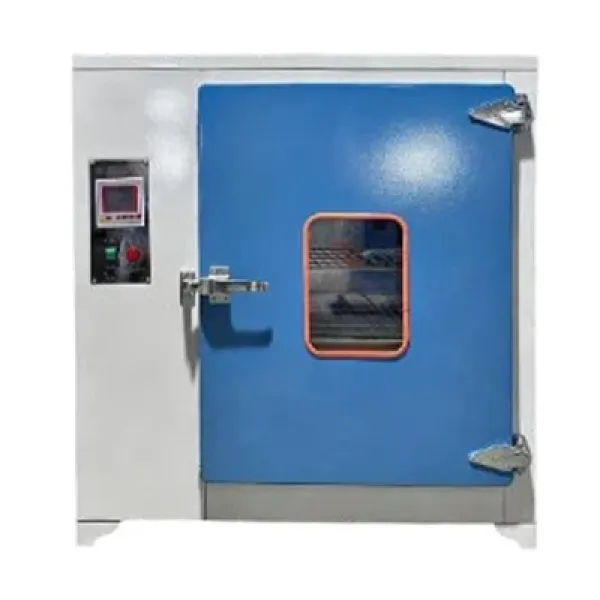

Laboratory Electric Drying Oven
The Laboratory Electric Drying Oven is designed for laboratory testing, sample preparation and industrial heating applications that require controlled and consistent heating. It is suitable for drying, baking and heat treatment processes involving compatible samples, components and materials.
Equipped with a 316L stainless steel inner chamber, this oven offers a durable chamber surface for demanding laboratory and industrial environments. Its temperature control system is specified to maintain temperature fluctuation within ±1°C under the applicable operating conditions, helping users achieve more consistent heating results.
With a total power rating of 6kW and a spacious working chamber, the oven is suitable for laboratories and industrial facilities that need to process larger samples or batches. Its practical design makes it an option for research, quality inspection and production-support applications.
Key Features
1. Precise Temperature Control
The oven operates across a temperature range from ambient temperature to 250°C, with a specified temperature fluctuation of ±1°C. This supports controlled heating for laboratory drying, baking and other compatible thermal processes.
Actual temperature uniformity depends on the loading arrangement, operating conditions and measurement location. Confirm the required performance for your specific application.
2. 316L Stainless Steel Inner Chamber
The inner chamber is made of 316L stainless steel, offering corrosion resistance and durability for suitable laboratory and industrial applications. This material is particularly useful where chamber material compatibility and long-term service are important considerations.
3. 6kW Heating Power
With a total power rating of 6kW, the oven is designed to support heating requirements for laboratory and industrial workflows. The appropriate electrical supply and installation should be confirmed before operation.
4. Spacious Working Chamber
The internal chamber measures 600 × 500 × 750 mm, providing space for samples, components and compatible materials in batch-processing applications. This capacity makes the unit suitable for users who require more working space than a compact laboratory oven can provide.
5. Durable Construction
The oven combines a stainless steel inner chamber with an industrial-style exterior structure. It is designed for routine use in research laboratories, testing departments and industrial work areas.
6. Multiple Application Possibilities
The oven can support various heating processes, including drying, baking and heat treatment, depending on the material and process requirements. Users should verify sample compatibility and required operating conditions before use.
Applications
The Laboratory Electric Drying Oven can be used in a variety of laboratory and industrial environments.
Laboratory Sample Drying: Drying compatible samples before analysis, testing or further processing.
Material Testing: Supporting controlled heating procedures for suitable materials and components.
Quality Control Laboratories: Preparing samples for inspection and evaluation.
Research and Development: Providing a controlled heating environment for laboratory experiments.
Industrial Manufacturing: Heating or drying compatible components during production-support processes.
Educational and Research Institutions: Supporting routine laboratory heating and sample preparation.
Application suitability depends on the sample composition, temperature requirements and operating procedure. Confirm whether the oven meets the specific needs of your process before ordering.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Laboratory Electric Drying Oven |
| Model | 101-3A |
| Temperature Range | Ambient temperature to 250°C |
| Temperature Fluctuation | ±1°C |
| Total Power | 6kW |
| Internal Dimensions (W × D × H) | 600 × 500 × 750 mm |
| External Dimensions (W × D × H) | 970 × 650 × 1020 mm |
| Weight | Approximately 123 kg |
| Inner Chamber Material | 316L Stainless Steel |
Why Choose This Laboratory Electric Drying Oven?
316L stainless steel chamber: Designed for durability and suitable material compatibility.
Controlled heating: Specified temperature fluctuation of ±1°C supports consistent operating conditions.
High heating capacity: The 6kW power rating supports demanding heating requirements.
Large chamber space: Suitable for larger samples and batch-processing needs.
Versatile use: Designed for laboratories, research facilities and industrial applications.
Request a Quotation
Looking for a laboratory electric drying oven for your research facility, testing laboratory or industrial operation? Contact us to discuss the 101-3A model and confirm whether its specifications match your application.
When requesting a quotation, please provide your intended application, required temperature conditions, electrical supply requirements and destination country. Our team can help you review the product specifications and obtain pricing for your equipment purchase.
