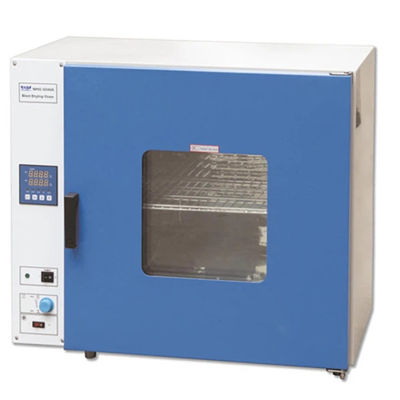

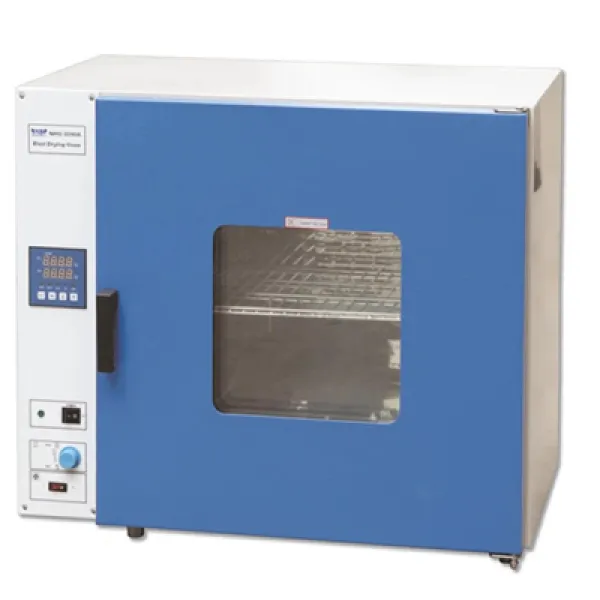

Lab Drying Oven
The Lab Drying Oven is designed for laboratory testing, sample preparation and industrial heating applications. It is suitable for drying, baking, wax melting and other compatible heating processes in industrial enterprises, mining facilities, research institutions and quality control laboratories.
Equipped with a digital microcomputer temperature controller and a hot air circulation system, the oven helps maintain a consistent temperature throughout the working chamber. Its practical chamber design and reliable heating components make it suitable for routine laboratory work and industrial applications that require controlled heating.
The oven also offers optional temperature-limit protection and data recording functions, allowing users to select a configuration according to their operational and monitoring requirements.
Key Features
1. Digital Temperature Control
The oven uses an LED digital display and a microcomputer temperature controller for convenient temperature setting and monitoring. The controller includes temperature protection and timing functions to support reliable daily operation.
2. Durable Chamber Construction
The inner chamber is constructed from mirror-finish stainless steel or brushed stainless steel, with argon arc welding for the chamber structure. The exterior is made of high-quality steel plate, providing a practical design for laboratory and industrial environments.
3. Hot Air Circulation System
The hot air circulation system consists of a fan and air ducts designed to distribute heated air throughout the chamber. This helps improve temperature uniformity during drying, baking and other compatible heating processes.
4. Reliable Heating Components
The oven uses high-quality fans and thyristor control components designed for dependable operation and long service life, helping reduce the need for frequent component replacement.
5. Optional Over-Temperature Protection
An independent temperature-limit alarm system is available as an option. When the temperature exceeds the configured limit, the system can automatically interrupt operation to help protect samples and equipment.
6. Optional Temperature Recording
The oven can be equipped with an optional printer or RS-485 communication interface for connecting to a compatible printer or computer. These options support real-time recording and monitoring of temperature changes for applications that require process documentation.
Applications
The Lab Drying Oven is suitable for a range of laboratory and industrial applications, including:
Laboratory Sample Drying: Drying compatible samples before testing, analysis or further processing.
Industrial Baking: Heating and baking suitable materials or components under controlled conditions.
Wax Melting: Supporting wax melting processes within the equipment's specified operating conditions.
Research and Development: Providing controlled heating for laboratory experiments and material studies.
Quality Control: Preparing samples for inspection and evaluation.
Industrial and Mining Laboratories: Supporting routine drying and heating procedures in industrial facilities.
Application suitability depends on the material, required temperature profile and operating procedure. Confirm material compatibility and any specific process requirements before use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Lab Drying Oven |
| Model | DHG-9055A |
| Temperature Range | RT +10°C to 300°C |
| Constant Temperature Fluctuation | ±1°C |
| Temperature Resolution | 0.1°C |
| Supply Voltage | 220V, 50Hz |
| Power | 1220W |
| Ambient Temperature | +5°C to 40°C |
| Inner Chamber Dimensions (W×D×H) | 420 × 400 × 345 mm |
| Overall Dimensions (W×D×H) | 720 × 580 × 530 mm |
| Standard Shelves | 2 pcs |
| Timer Range | 1–9999 minutes |
| Over-Temperature Protection | Optional |
| Printer / RS-485 Interface | Optional |
Why Choose This Lab Drying Oven?
Convenient operation: Digital temperature setting and timing functions simplify routine heating procedures.
Versatile applications: Suitable for drying, baking, wax melting and other compatible laboratory heating tasks.
Uniform heating design: Forced hot air circulation helps distribute heat throughout the working chamber.
Flexible configuration: Optional over-temperature protection and temperature recording functions accommodate different operational requirements.
Practical chamber size: The working chamber provides space for routine laboratory samples and small batches of materials.
Request a Quotation
Looking for a lab drying oven for your laboratory, research facility or industrial operation? Contact us to confirm the DHG-9055A specifications, available configurations and pricing.
When requesting a quotation, please provide your application, required temperature conditions, power supply requirements and destination country. We can help you review the available options and select a suitable configuration for your purchasing needs.
